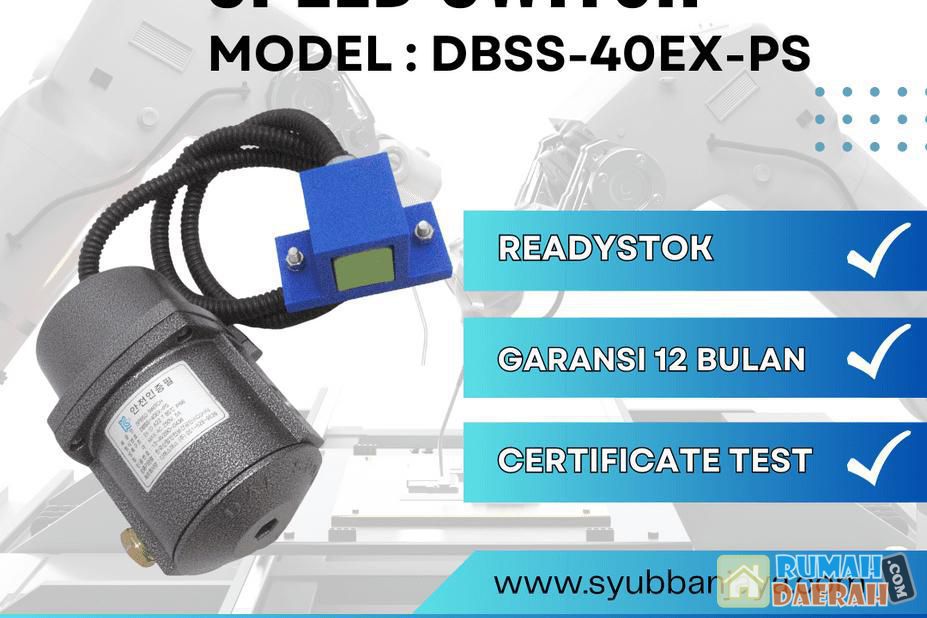

Speed Switch adalah sensor gerak non contacting yang mendeteksi putaran shaft pada Pulley Conveyor dan mengoperasikan relay output saat kecepatan mencapai nilai tertentu seasuai settingan. Alat ini sangat penting dan harus ada di sebuah conveyor karena bisa mengontrol dan mengendalikan kecepatan conveyor ketika running.
Specification :
Type : Separation
Model : DBSS-40EX-PS
Non-Contacting, Proximity Type
Display With Sensor
Contact Capacity : 5A 125VAC. 3a 250VAC
Power : AC 85-250v Free Voltage
Number Of Contacts : Spdt x 2ea
Control : Speed: 1-9999rpm
On Time Delay : 0-30sec
Off Time Delay : 0-30sec Proximity S/W Range: 20mm
Cable Entry : NPT 3/4" x 2ea
Protection : Explosion Proof (Ex Td A22 T85 C IP66)
Weight :
Mounting Bolt & Nut / Washer (M8)
Color : Hammertion Fe411
Dokumen yang disediakan sbb :
1. Certificate of Manufacture
2. Certificate of Origin
3. Certificate of test
4. Certificate Warranty 12 month
Harga dan stok sewaktu-waktu dapat berubah, hubungi distributor sebelum open order.
